Motorola DP4800

Motorola DP4800

£452.00 Ex VAT £542.40 Inc VAT

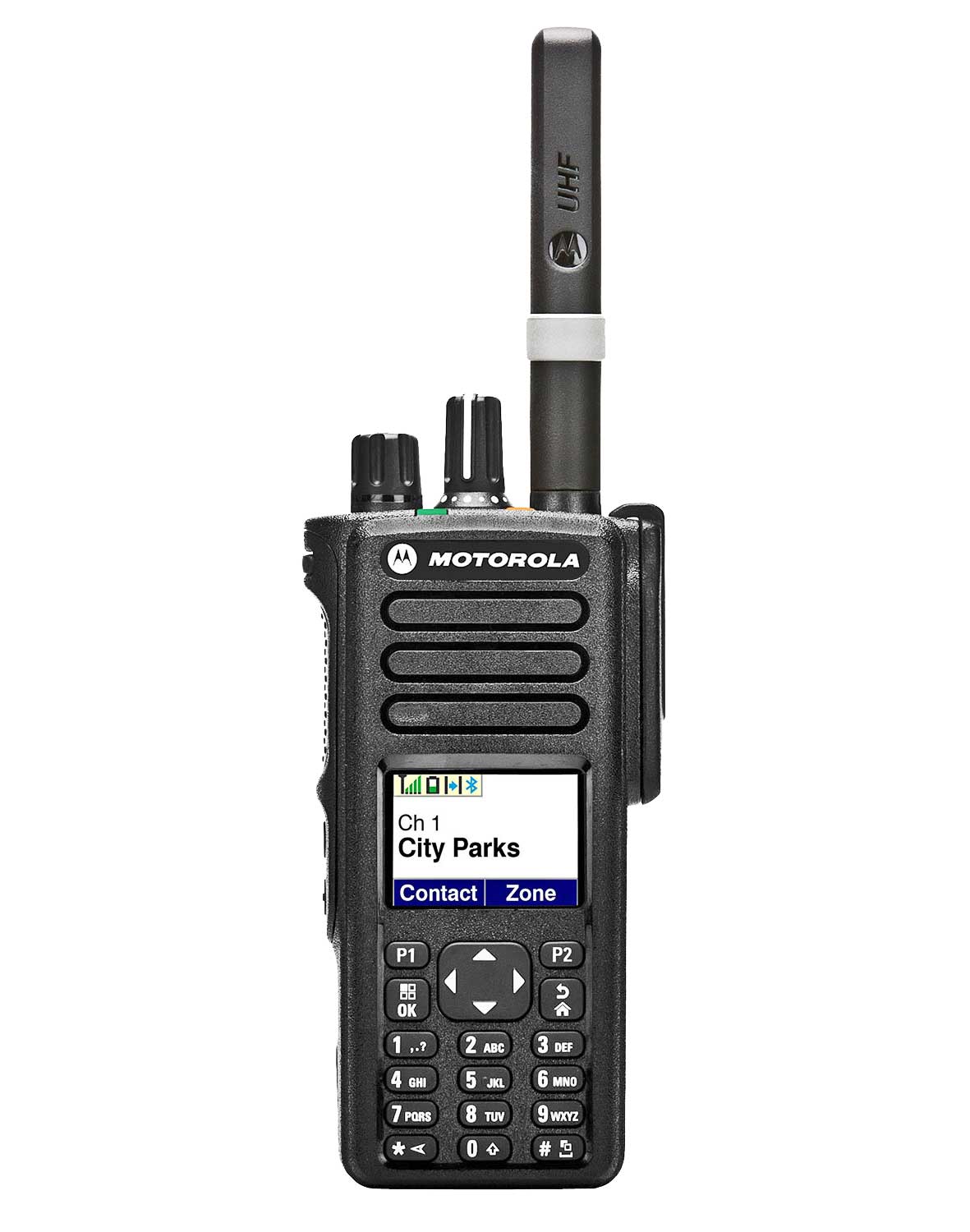

The Motorola DP4800 Portable Two-Way Radio is a versatile addition to the DP range of Motorola 2 way radios. It features a full keypad with a 5 line colour display and 1000 channels

This item is a licenced two-way radio. This means that you are required to have a valid OFCOM licence to use the radio in the UK. Using the radio without a licence is illegal. If you would like more information regarding OFCOM licences, please contact our service team by calling 0800 328 0100 or by emailing service@eemits.co.uk

FREE Next Day Delivery*

*Get FREE next day UK mainland delivery on orders over £50.

Programming Included

Hassle-free setup, ready to go.

The Motorola DP4800 Portable Two-Way Radio is a versatile addition to the DP range of Motorola 2 way radios. It features a full keypad with a 5 line colour display and 1000 channels.  It’s rugged design protects against wind and dust and it can survive being submersed in up to one meter of water for up to 30 mins, resulting in a tough two way radio that can withstand tough conditions. With built in scrambling for increased security and privacy, transmit interrupt to allow you to interrupt another conversation to communicate vital information and an emergency button which can be programmed to send an alert to a colleague or dispatcher you can rely on this two way radio to keep you and your communications safe and secure.

Standard Features:

1000 Channels Large, textured push-to-talk button
Large 5-line display (colour) PTT ID
Lone worker IP57
Tri-colour LED 5 programmable buttons
Privacy features Intelligent audio

Whats in the box?

1 x Radio 1 x Battery
1 x Antenna 1 x Dust cover
1 x Belt clip



Technical Specification

Brands Motorola
Battery Upgrades Yes
Types of Radio Hand Held Portable
Frequency Ranges UHF:  403-527 MHz VHF:  136-174 MHz
Channel Capacities 1000
Channel Spacings 12.5 / 20 / 25kHz
Operating Voltages >7.5 V (Nominal)
Types of Battery NiMH 1400mAh as standard - upgrade to Li-Ion option available
Battery Life (Digital) Approx. 11.5 hours
Battery Life (Analogue) Approx. 9 hours
Frequency Stability ± 0.5 ppm
Weight of Radio (includes battery and antenna) 366.5 g
American Military Standards MIL-STD-810 C / D / E / F / G
Dust & Water Instrusions IP57
Humidity MIL-STD-810 C / D / E / F / G
Shock & Vibration MIL-STD-810 C / D / E / F / G
Businesses Yes
Ip Ratings IP57
Displays Full Key Pad
Sizes Regular
Batteries NiMH
Encryptions Basic
Modulating Limiting ± 2.5kHz @ 12.5 kHz ±4.0kHz @ 20kHz ± 5.0kHz @ 25 kHz
Dimensions 130.3 x 55.2 x 41.1 mm
Features GPS, Lone Worker, Panic Button
RX Selectivity 45dB @ 12.5 kHz 70dB @ 20/25kHz
RX Intermodulations 70 dB
TX Audio Responses TIA603D
Esd IEC 61000-4-2 Level 3
Rx Spurious ≥ 70 dB
Tx Digital Protocols ETSI TS 102 361-1, -2, -3
Tx Digital Vocoder Types AMBE+2™
Adjacent Channel Power 60dB @ 12.5 kHz 70dB @ 20/25kHz
Radio Series DP4000
Tx Audio Disstortion ≤ 3 %
Rx Hum and Noise -40dB @ 12.5 kHz -45dB @ 20/25kHz
Rx Audio Responses TIA603D
Operating Temperatures -30° C / +60°C
Storage Temperatures -40° C / +85°C
Conducted Radiated Emissions -36 dBm < 1GHz -30 dBm > 1GHz
Analogue Sensitivity 0.3 μV (12 dB SINAD) 0.22 μV (Typical)(12 dB SINAD)
Tx FM Hum and Noise -40dB@ 12.5 kHz -45dB@ 20/25kHz
Fsk Digtial Modulation 12.5 kHz Data: 7K60F1D & 7K60FXD 12.5 kHz Voice: 7K60F1E & 7K60FXE Combination of 12.5 kHz Voice & Data: 7K60F1W
Rx Digital Sensitivity 5% BER : 0.25 μV 0.19 μV (Typical)
Licenced Digital
Atex No
Product Statuses Enquiry Only
