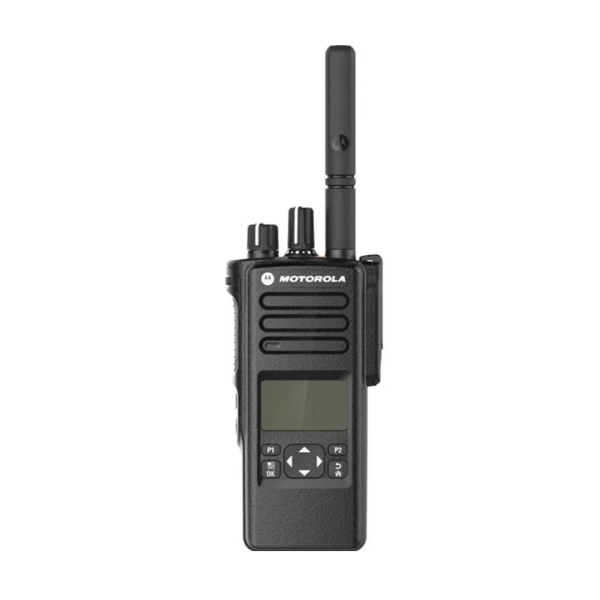

Motorola DP4601

Motorola DP4601 Two way radio

£293.81 Ex VAT £352.57 Inc VAT

Please note: The Motorola DP4601 has been discontinued and replaced by the advanced Motorola R Series radio

The Motorola DP4601 Portable Two-Way Radio is a versatile addition to the DP range of Motorola 2 way radios. It features a half keypad with a 4 line black and white display and 1000 channels.  Complete with Blutooth and GPS.

This item is a licenced two-way radio. This means that you are required to have a valid OFCOM licence to use the radio in the UK. Using the radio without a licence is illegal. If you would like more information regarding OFCOM licences, please contact our service team by calling 0800 328 0100 or by emailing service@eemits.co.uk

FREE Next Day Delivery*

*Get FREE next day UK mainland delivery on orders over £50.

Programming Included

Hassle-free setup, ready to go.

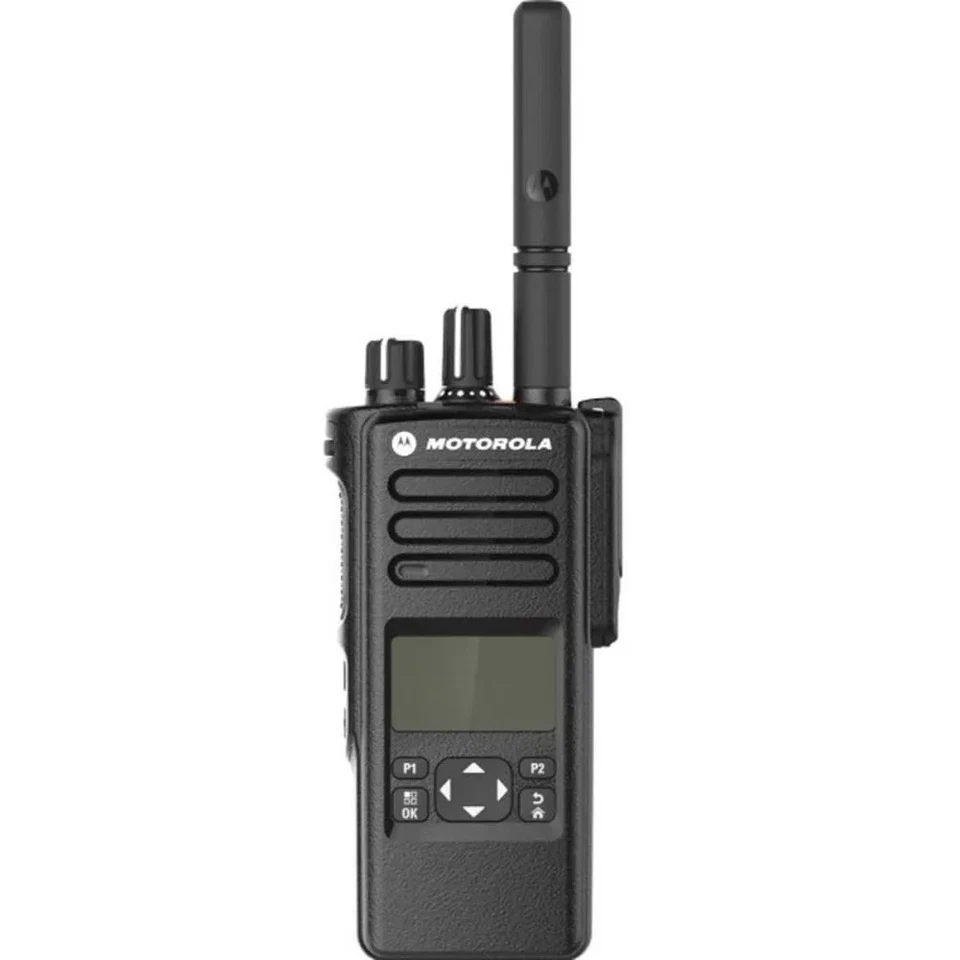

The Motorola DP4601 2Wayradio.

The Motorola DP4601 Portable Two-Way Radio is a versatile and reliable addition to the Motorola DP series. Built for demanding environments, this model combines durability with advanced features that keep your team connected, safe, and efficient.

The DP4601 comes with a half keypad and a 4-line black and white display, making it simple to navigate through its 1,000 available channels. Its rugged IP57-rated design resists dust and wind while also surviving immersion in up to one meter of water for 30 minutes. This durability makes it the ideal choice for industries such as construction, security, and emergency services.

In addition, the DP4601 includes built-in scrambling for extra security, Transmit Interrupt to break through ongoing conversations with urgent information, and a programmable emergency button that can send an alert to colleagues or dispatchers. These features ensure safer, more secure communications in critical situations.

To enhance connectivity, this radio also integrates GPS and Bluetooth technology. With these functions, your team benefits from advanced location tracking and seamless wireless communication.

Standard Features:

1000 Channels Integrated GPS and Bluetooth
4-Line display (black and white) Half key pad
GPS Emergency button
Lone Worker IP57
Tri-colour LED 5 programmable buttons
Privacy Features Intelligent Audio

Whats in the box?

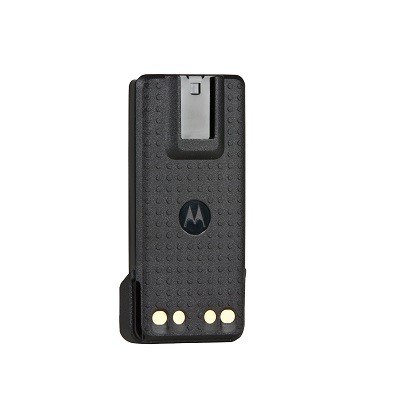

1 x Radio 1 x Battery

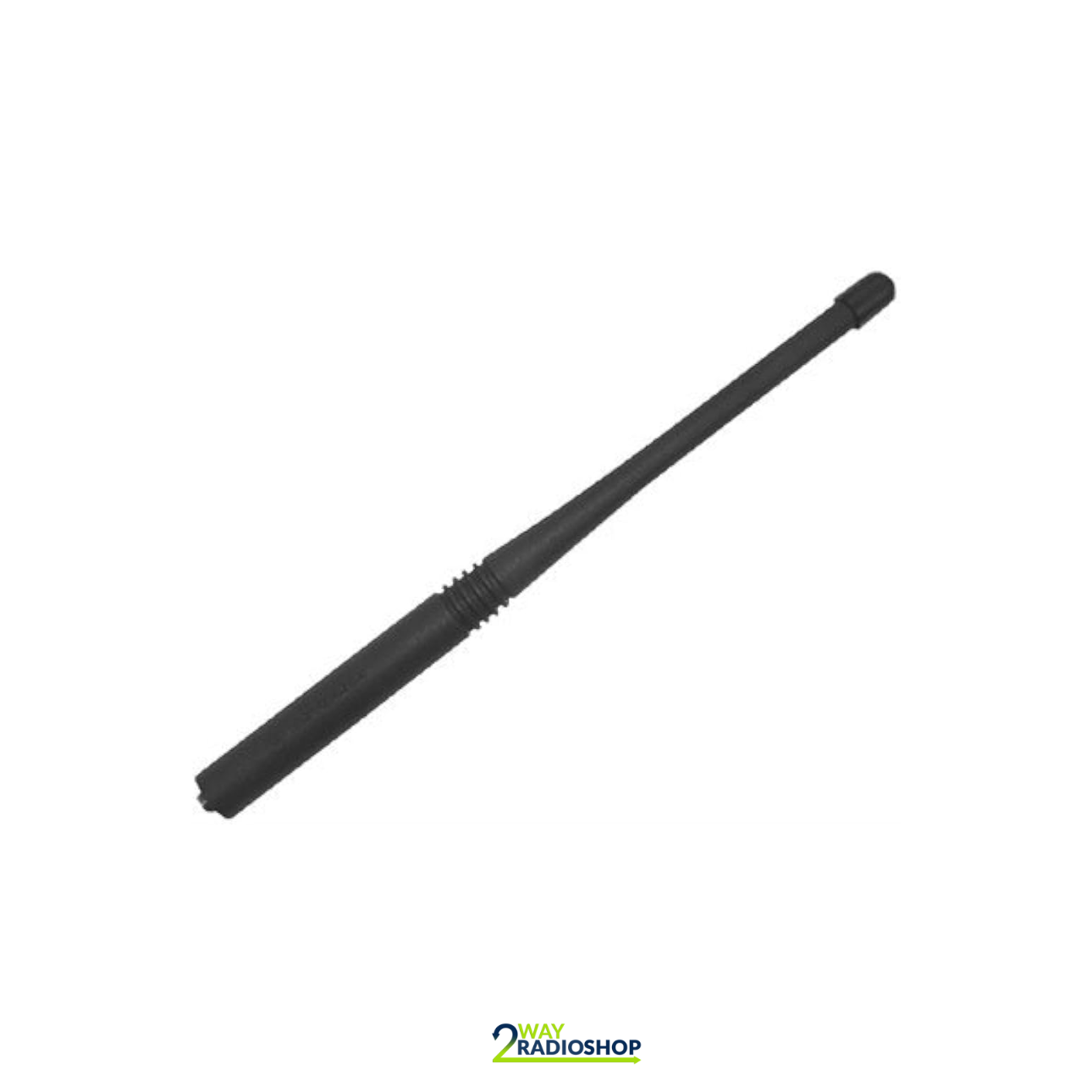

1 x Antenna 1 x Dust cover
1 x Bet clip



Technical Specification

Download the technical document.
Brands Motorola
Product visibility outofstock
Battery Upgrades Yes
Types of Radio Hand Held Portable
Frequency Ranges UHF:  403-527 MHz VHF:  136-174 MHz
Channel Capacities 1000
Channel Spacings 12.5 / 20 / 25kHz
Operating Voltages >7.5 V (Nominal)

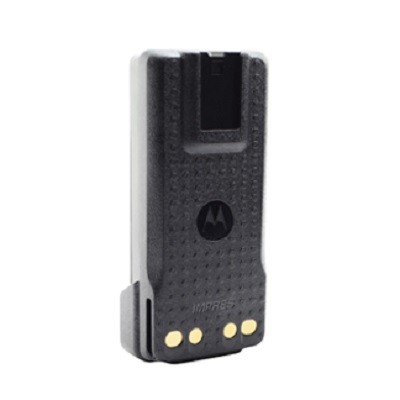

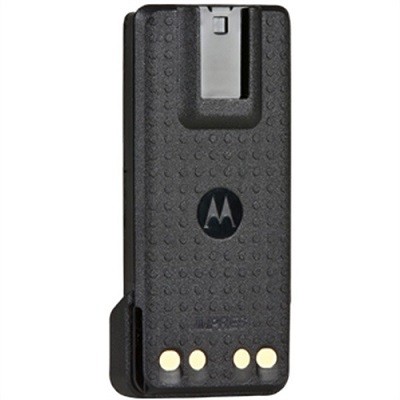

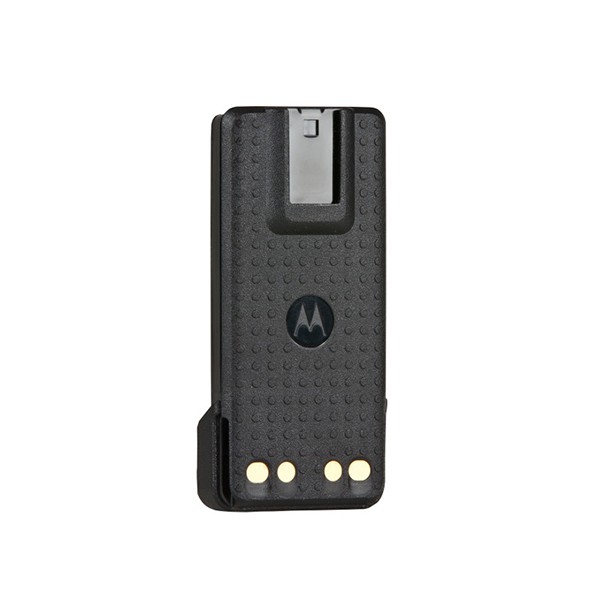

Types of Battery NiMH 1400mAh as standard - upgrade to Li-Ion option available
Battery Life (Digital) Approx. 12.5 hours
Battery Life (Analogue) Approx. 9 hours
Frequency Stability ± 0.5 ppm
Weight of Radio (includes battery and antenna) 366.5 g
American Military Standards MIL-STD-810 C / D / E / F / G
Dust & Water Instrusions IP57
Humidity MIL-STD-810 C / D / E / F / G
Shock & Vibration MIL-STD-810 C / D / E / F / G
Businesses Yes
Ip Ratings IP57
Displays Half Key Pad
Sizes Regular
Batteries NiMH
Encryptions Basic
Modulating Limiting ± 2.5kHz @ 12.5 kHz ±4.0kHz @ 20kHz ± 5.0kHz @ 25 kHz
Radio Models DP4601
Dimensions 130.3 x 55.2 x 41.1 mm
Features Lone Worker, GPS, Panic Button, Bluetooth
RX Selectivity 45dB @ 12.5 kHz 70dB @ 20/25kHz
RX Intermodulations 70 dB
TX Audio Responses TIA603D
Esd IEC 61000-4-2 Level 3
Rx Spurious ≥ 70 dB
Tx Digital Protocols ETSI TS 102 361-1, -2, -3
Tx Digital Vocoder Types AMBE+2™
Adjacent Channel Power 60dB @ 12.5 kHz 70dB @ 20/25kHz
Radio Series DP4000
Tff cold < 60 seconds
Ttff Hot Start <10 seconds
Horizontal Accuracy < 5 metres
Tx Audio Disstortion ≤ 3 %
Rx Hum and Noise -40dB @ 12.5 kHz -45dB @ 20/25kHz
Rx Audio Responses TIA603D
Operating Temperatures -30° C / +60°C
Storage Temperatures -40° C / +85°C
Conducted Radiated Emissions -36 dBm < 1GHz -30 dBm > 1GHz
Analogue Sensitivity 0.3 μV (12 dB SINAD) 0.22 μV (Typical)(12 dB SINAD)
Tx FM Hum and Noise -40dB@ 12.5 kHz -45dB@ 20/25kHz
Fsk Digtial Modulation 12.5 kHz Data: 7K60F1D & 7K60FXD 12.5 kHz Voice: 7K60F1E & 7K60FXE Combination of 12.5 kHz Voice & Data: 7K60F1W
Rx Digital Sensitivity 5% BER : 0.25 μV 0.19 μV (Typical)
Licenced Digital
Atex No
Product Statuses Enquiry Only
Product Stock Status Discontinued

People also bought

You may also like…

Related products

Need Advice?

Contact our friendly sales team today for expert advice and guidance on the best models for you.
Contact

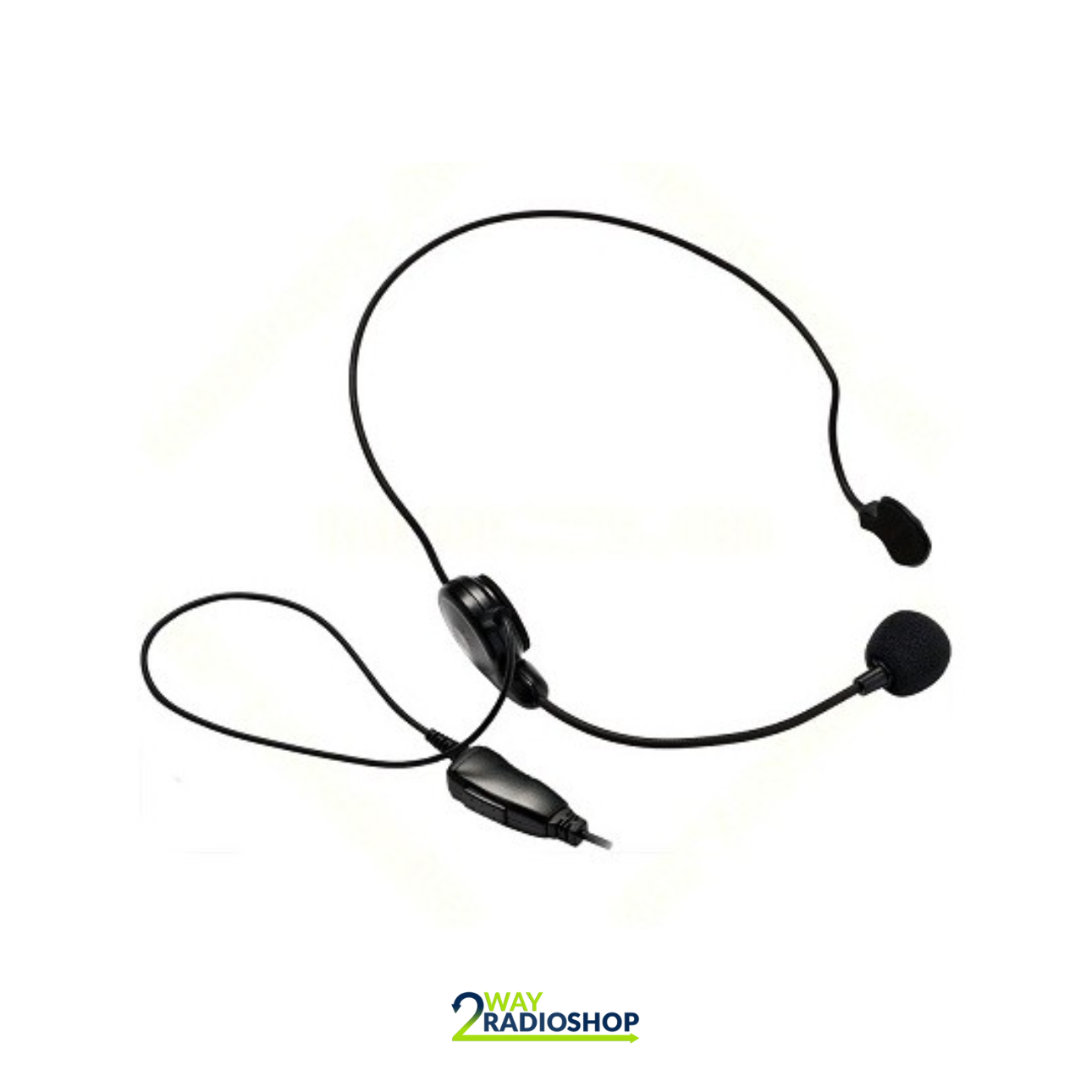

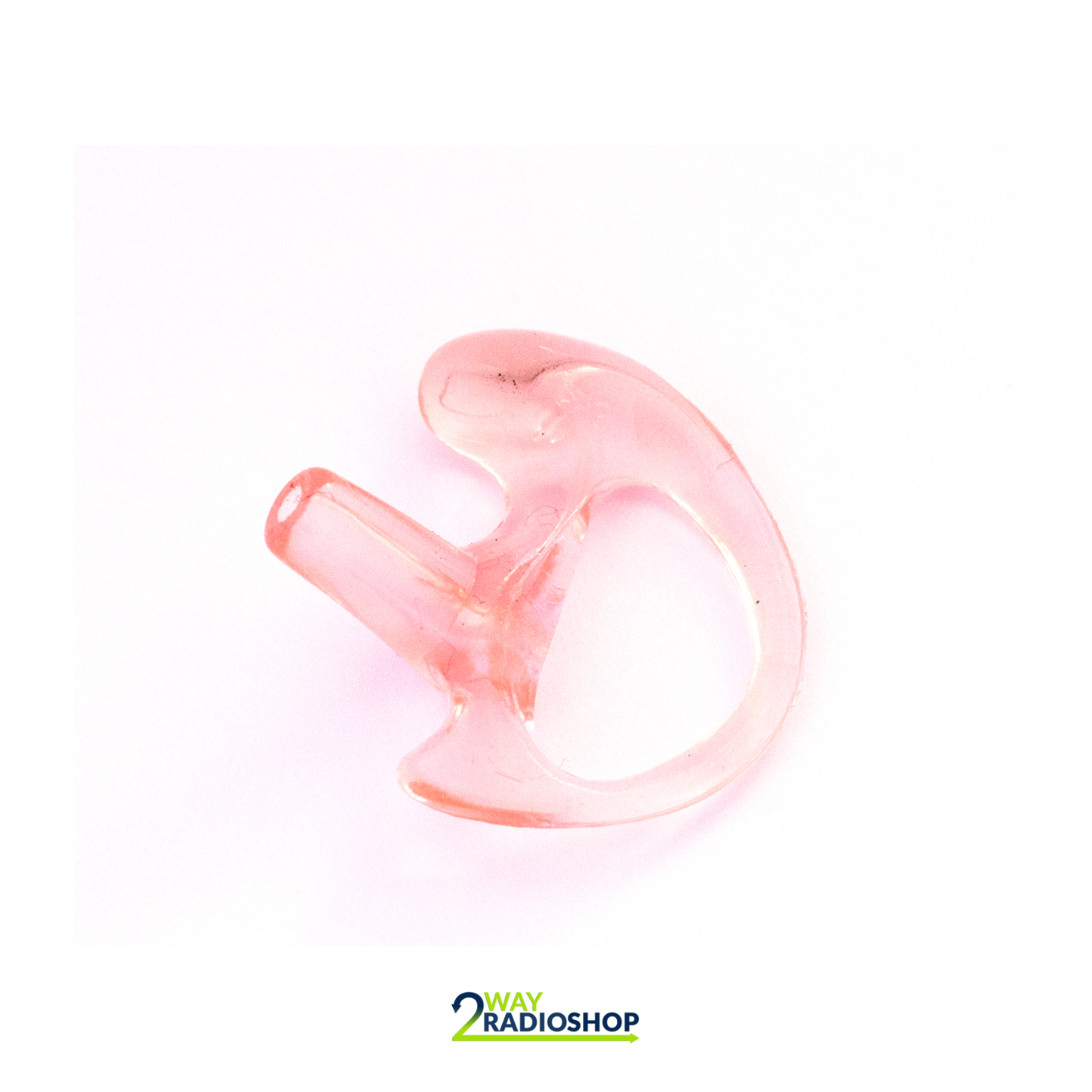

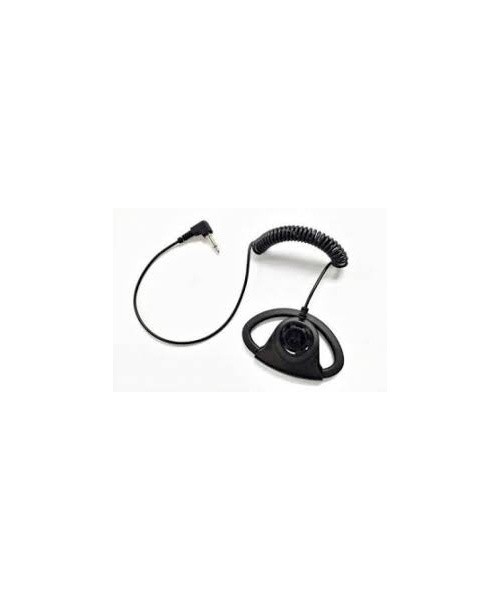

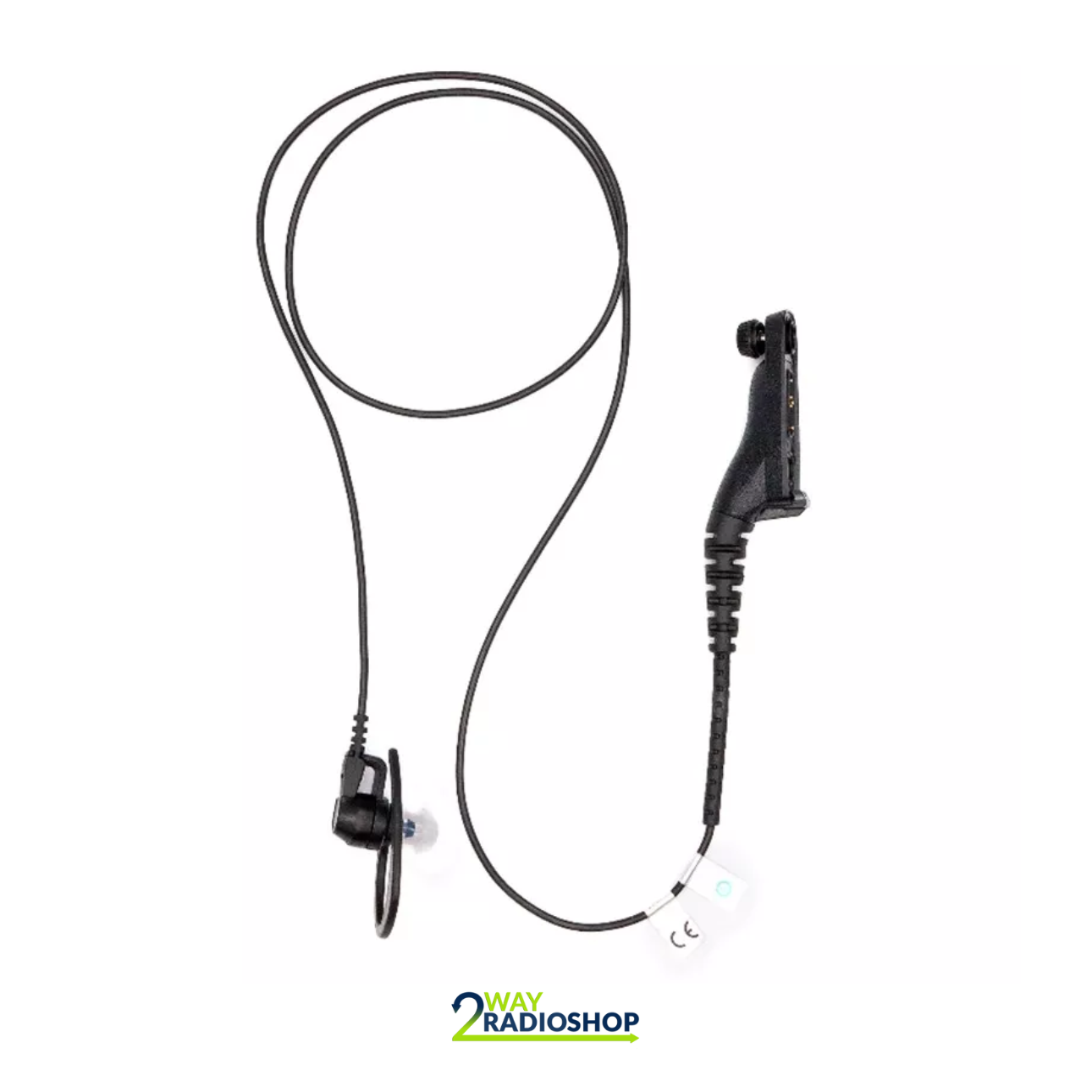

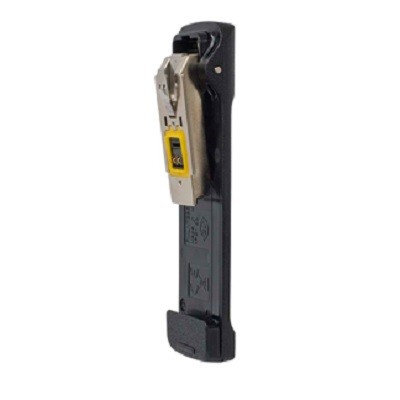

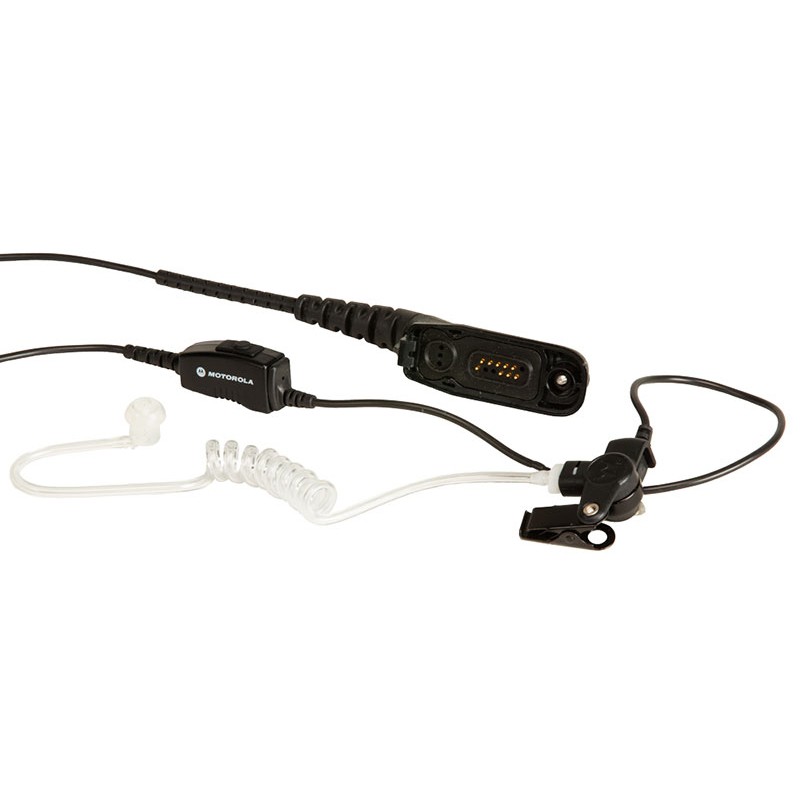

Want To Include Accessories?
