MOTOTRBO R7 "Capable" Non-Keypad Two-Way Radio

More Views

Product Part Number: R7CNKP

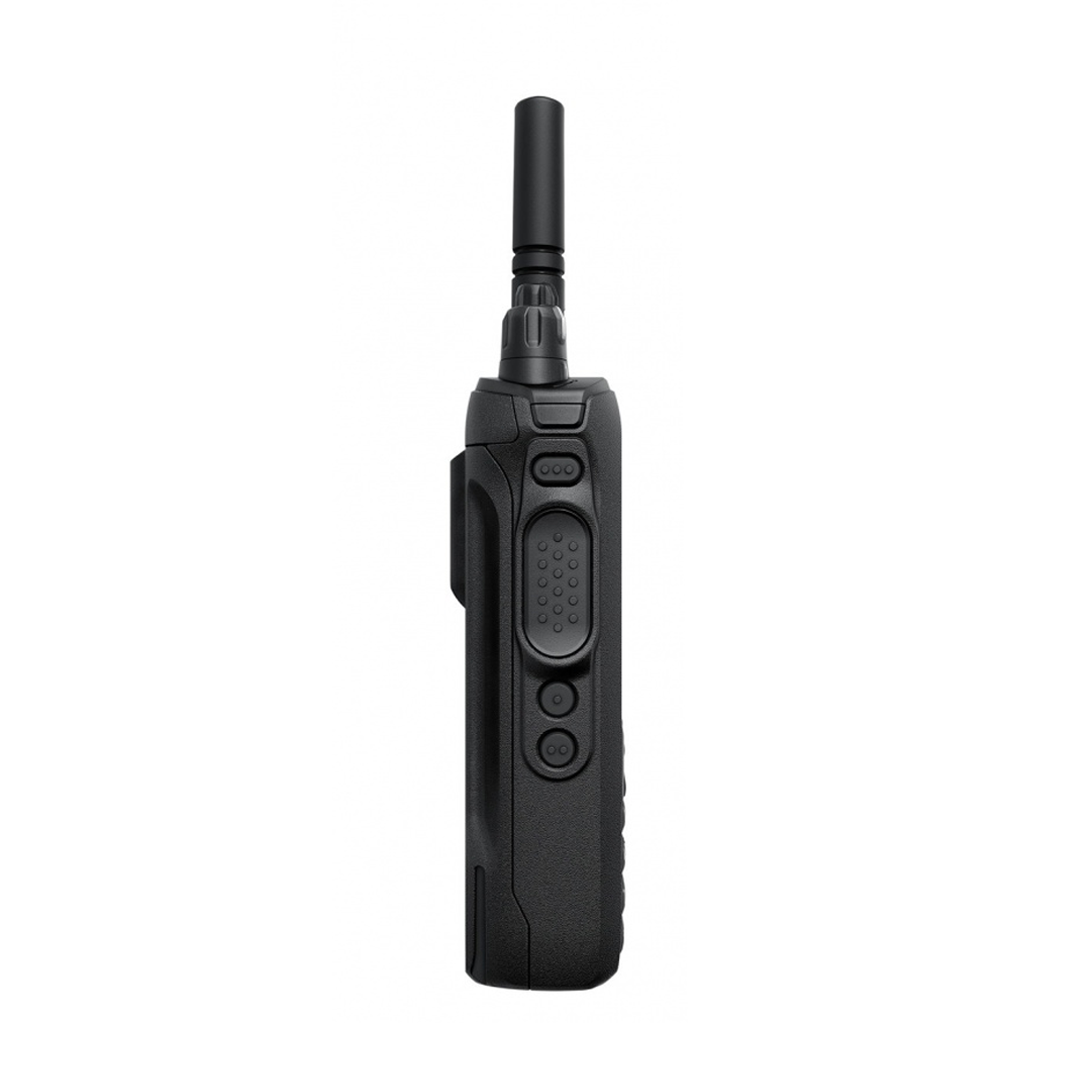

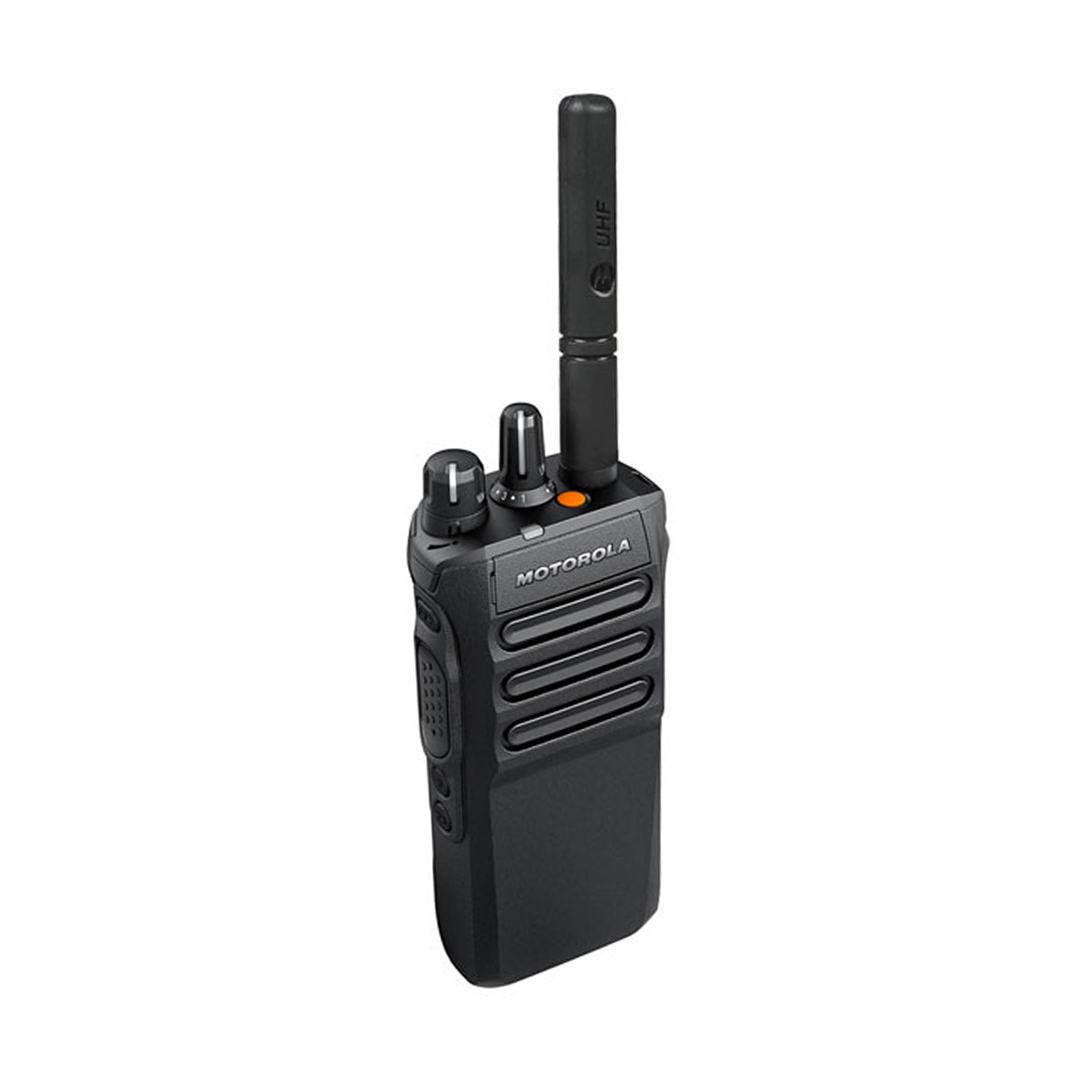

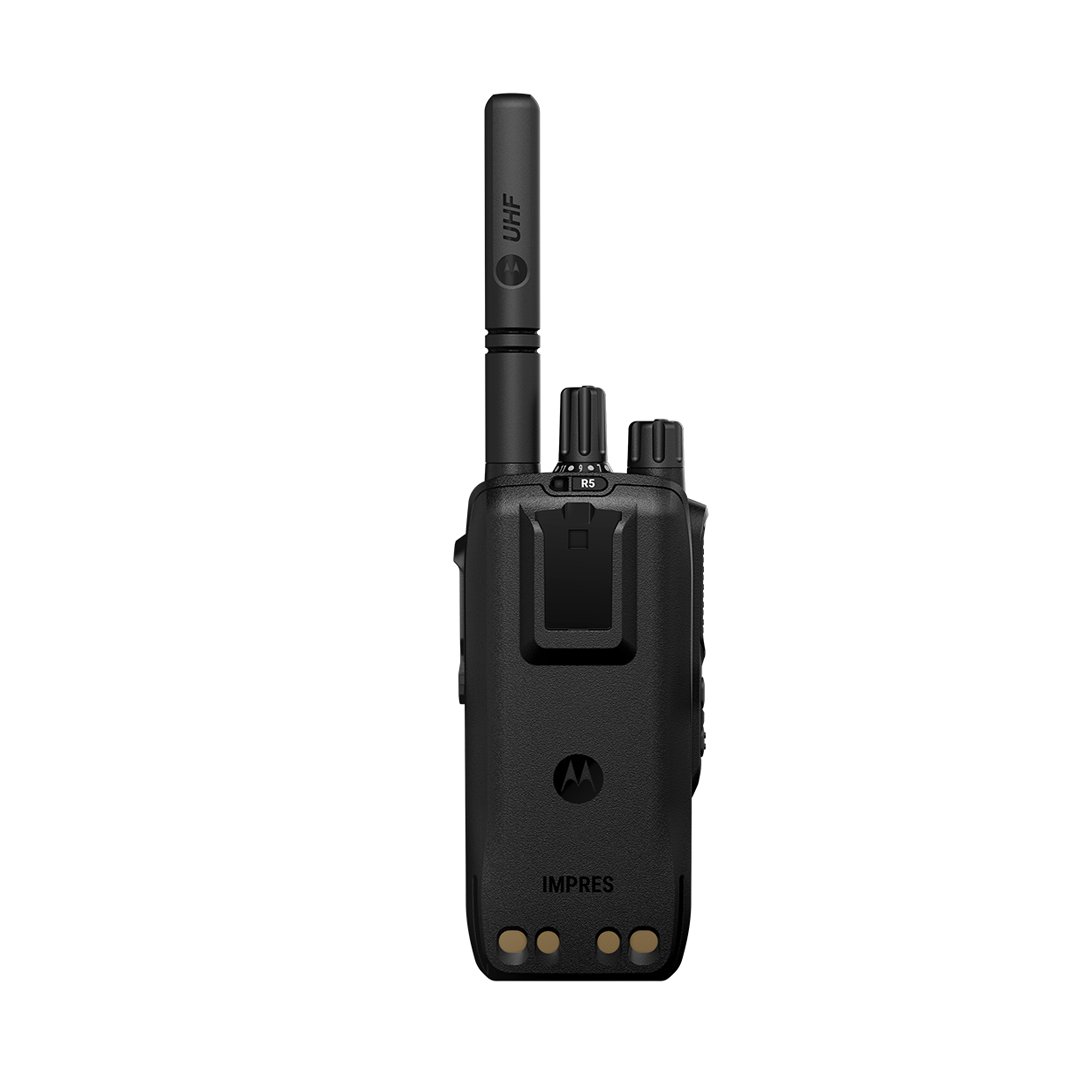

MOTOTRBO R7 "Capable" Non-Keypad Two-Way Radio

Availability: In stock

Ex. VAT: £449.21 Incl. VAT: £539.05
The Motorola R7 "Capable" (Non-Keypad) Digital Two-Way Radio offers you loud, clear audio in a device that's rugged in design and dependable in nature.
FREE UK Delivery
Programming Included
Need Advice? Call Us on 0800 328 0100

Product Description


The Motorola R7 "Capable" (Non-Keypad) Digital Two-Way Radio is a part of the "Next-Gen" MOTOTRBO range of two-way radios from Motorola boasting market leading audio and seamless connectivity in mind for the end user. The Motorola R7 "Capable" is designed and tested to MIL-STD-810 military standards, meaning it is built to last in harsh, rugged environments. The device has been tested to a IP66 and IP68 standard showing that the R7 is dust-tight and protected from water immersion up to two metres for two hours. An adaptive dual microphone provides the end user with noise suppression capabilities that bring incredible audio to two-way communications. Automatic acoustic feedback suppression also allows your team to hear over the sound of machinery or busy crowds in addition to Motorola's own "Intelligent" audio. The device features push-to-talk (PTT) for instant communication and has superior receiver sensitivity, allowing you to send and receive messages at the edge of coverage (where other devices may struggle).
Technical Specification

Additional Information

Product Specification Sheet

Type of Radio Hand Held Portable
Frequency Range UHF 400-527 MHz - VHF 136,174 MHz
Channel Capacity 64 channels
Channel Spacing 12.5 kHz, 20 kHz, 25 kHz
Type of Battery Slim IMPRES Li-Ion battery
Battery Life (Digital) Up to 22 hours
Frequency Stability +/-0.5 ppm
Weight of Radio (includes battery and antenna) 289g
RX Digital Sensitvity 0.14 μV (typical)
RX Analogue Sensitivity 0.16 μV (typical)
RX Selectivity (TIA-603) 60 dB @ 12.5 kHz
RX Intermodulation (TIA-603) 70 dB
RX Hum and Noise 40 dB @ 12.5 kHz • -45 dB @ 20 kHz / 25 kHz
RX Rated Audio Power Output 1 W / 3 W
RX Rated Audio Distortion ≤1.5%
RX Audio Response +1, -3 dB
RX Conducted Spurious Emission -57 dBm
Tx RF Power Output 12.5 kHz, 20 kHz, 25 kHz
Operating Temperature -30°C to 60°C
Storage Temperature -40 °C to 85 °C
ESD IEC 61000-4-2 Level 4
American Military Standard MILITARY STANDARDS (MIL-STD 810)
Dust & Water Instrusion IP68 (submersion up to 2m, 2hrs) IP66 for high pressure-water resistance per IEC 60529
