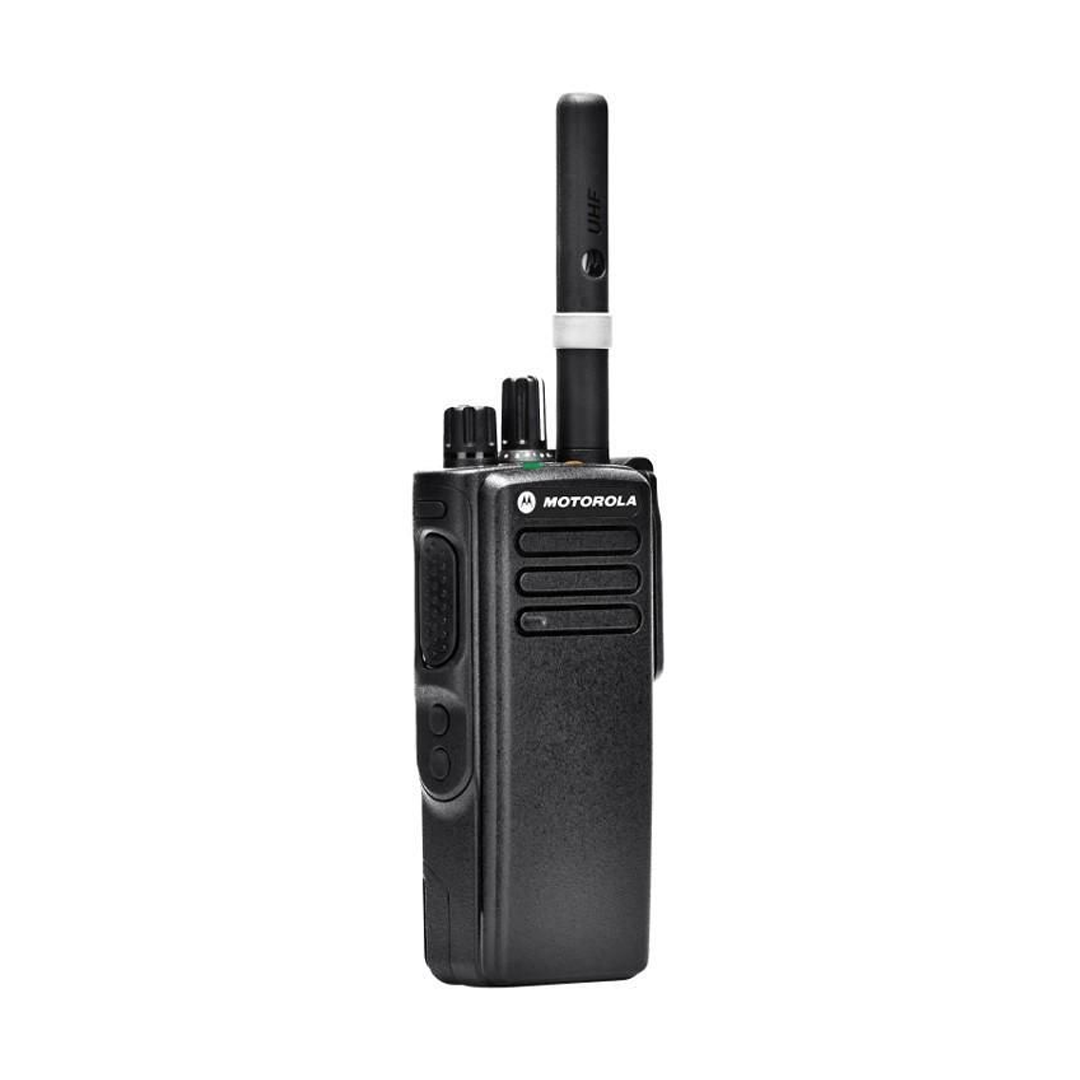

Motorola DP4401e 2 Way Radio

More Views

Product Part Number: DP4401e
Motorola DP4401e 2 Way Radio

Availability: In stock

Ex. VAT: £309.00 Incl. VAT: £370.80

The Motorola DP4401e Two-Way Radio is a versatile addition to the DP range of Motorola 2 way radios. It features 'best in class' audio which automatically adjusts the radio volume according to how noisy your environment is.

* Required Fields

Ex. VAT: £309.00 Incl. VAT: £370.80
FREE UK Delivery
Programming Included
Need Advice? Call Us on 0800 328 0100

Authorised Dealer For

Motorola

Product Description

Details

Motorola DP4401e 2 Way Radio with this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive.  The DP4001e Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.  With built in scrambling for increased security and privacy, transmit interrupt to allow you to interrupt another conversation to communicate vital information and an emergency button which can be programmed to send an alert to a colleague or dispatcher you can rely on this two way radio to keep you and your communications safe and secure. This model features integrated GPS and Bluetooth for advanced connectivity and features

Standard Features:

32 Channels Integrated GPS and Bluetooth
Lone Worker IP68
Tri-colour LED 5 programmable buttons
Privacy Features Intelligent Audio

Whats in the box?

1 x Radio 1 x Battery
1 x Antenna 1 x Dust cover
1 x Bet clip





Technical Specification

Additional Information

Barcode 5055563831702
Product Specification Sheet

Radio Series DP4000e Series
Type of Radio Hand Held Portable
Frequency Range

UHF:  403-527 MHz

VHF:  136-174 MHz

Channel Capacity

32

Channel Spacing

12.5 / 20 / 25kHz

Operating Voltage

>7.5 V (Nominal)

Type of Battery

NiMH 1400mAh as standard - upgrade to Li-Ion option available

Battery Life (Digital)

Approx. 12.5 hours

Battery Life (Analogue)

Approx. 9 hours

Frequency Stability

± 0.5 ppm

Dimensions (H x W x D)

130.3 x 55.2 x 37.2 mm

Weight of Radio (includes battery and antenna)

320 g

RX Digital Sensitvity

5% BER : 0.14 μV

RX Analogue Sensitivity

0.16 μV (12 dB SINAD)

RX Selectivity (TIA-603)

45dB @ 12.5 kHz

70dB @ 20/25kHz

RX Intermodulation (TIA-603)

70 dB

Spurious Response Rejection (TIA-603)

70 dB

RX Hum and Noise

-40dB @ 12.5 kHz

-45dB @ 20/25kHz

RX Rated Audio Power Output

Upto 5 W

RX Rated Audio Distortion

3%

RX Audio Response

TIA603D

RX Conducted Spurious Emission

-57 dBm

TX 4FSK Digital Modulation

12.5 kHz Data: 7K60F1D & 7K60FXD

12.5 kHz Voice: 7K60F1E & 7K60FXE

Combination of 12.5 kHz Voice & Data: 7K60F1W

TX Conducted/Radiated Emission

-36 dBm < 1GHz

 -30 dBm > 1GHz

TX Modulating Limiting

± 2.5kHz @ 12.5 kHz

±4.0kHz @ 20kHz

± 5.0kHz @ 25 kHz

Tx FM Hum & Noise

-40dB@ 12.5 kHz

-45dB@ 20/25kHz

TX Adjacent Channel Power

60dB @ 12.5 kHz

70dB @ 20/25kHz

Tx Audio Response

TIA603D

Tx Audio Distortion

3%

Tx Digital Vocoder Type

AMBE+2™

Tx Digital Protocol

ETSI TS 102 361-1, -2, -3

Operating Temperature

-30° C / +60°C

Storage Temperature

-40° C / +85°C

ESD

IEC 61000-4-2 Level 3

American Military Standard

MIL-STD-810 C / D / E / F / G

Dust & Water Instrusion

IP68

Humidity

MIL-STD-810 C / D / E / F / G

Shock & Vibration

MIL-STD-810 C / D / E / F / G

GPS - Time to first fix - cold start

< 60 seconds

GPS - Time to first fix - hot start

< 10 seconds

Horizontal Accuracy

< 5 metres

Warranty & Guarantee

All products supplied are covered by the manufacturers’ warranty, either 12 or 24 months depending on manufacturer, unless otherwise stated in writing. The warranty period commences from date of delivery/receipt. 2 Way Radio Shop cannot be liable for any defects arising from fair wear and tear, physical damage, liquid ingression or damage and or interference by the customer or any third party.

2 Way Radio Shop reserve the right to refuse to repair or replace goods if

  1. full payment for the goods has not been made
  2. the manufacturer refuses to accept the repairs/replacements under warranty for whatever reason.
