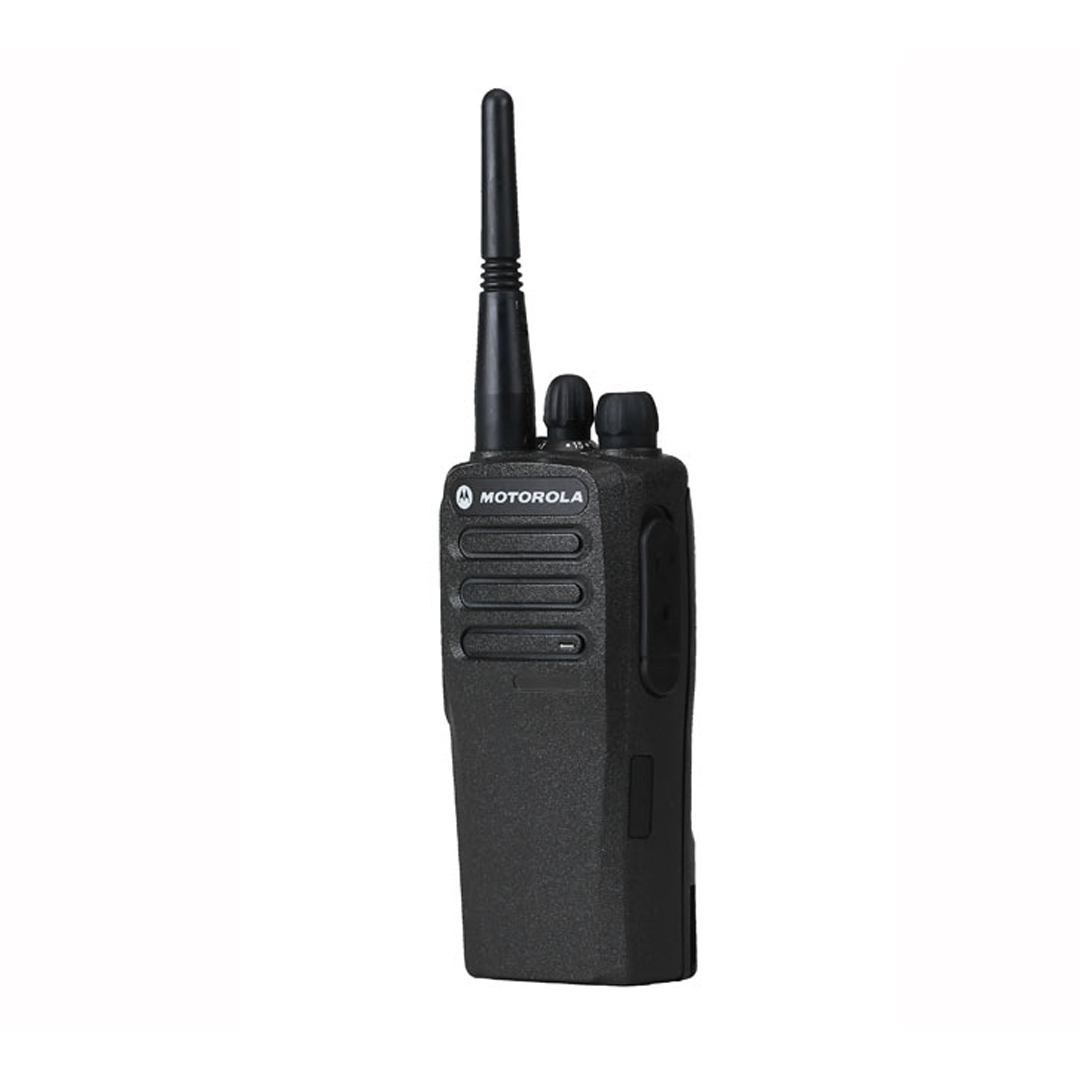

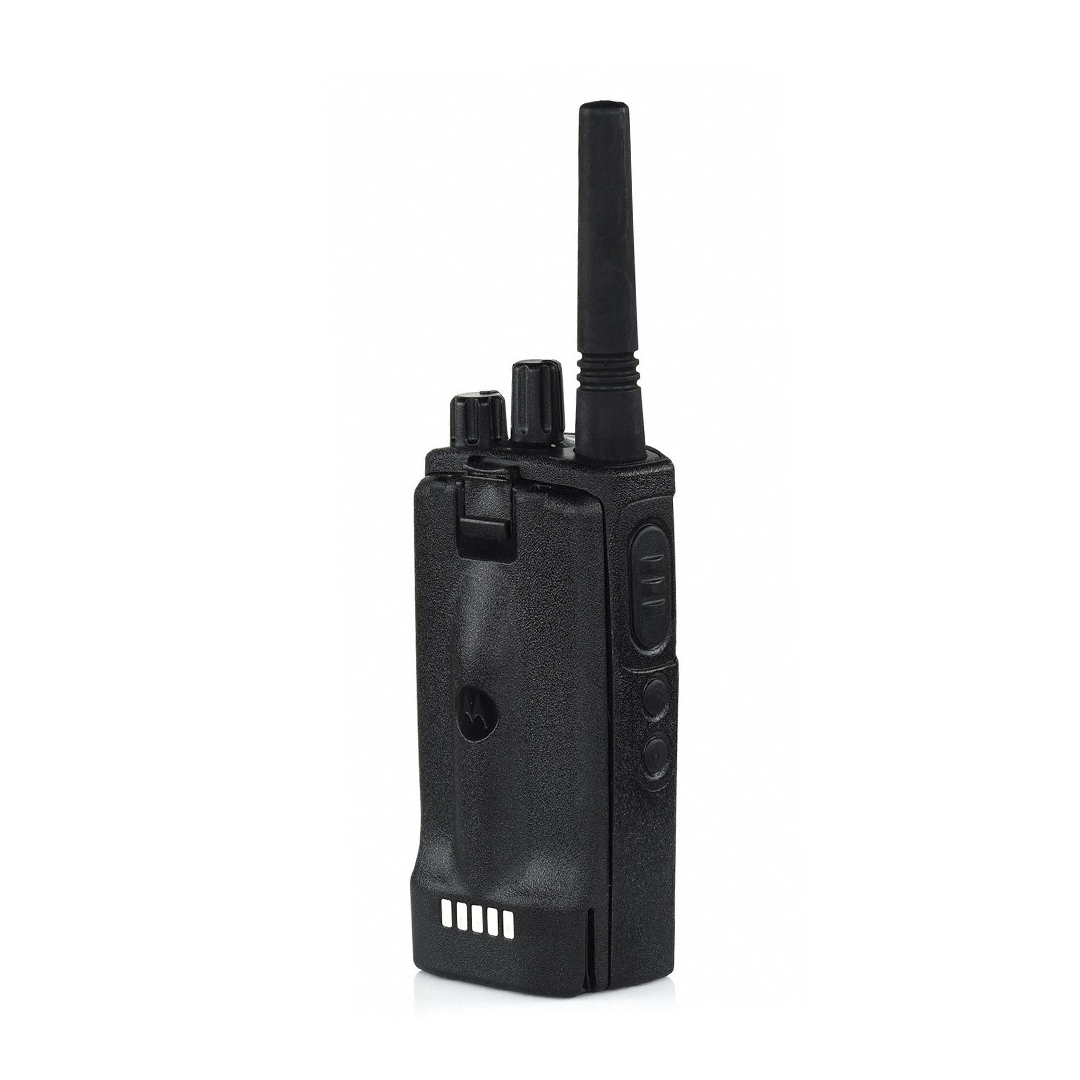

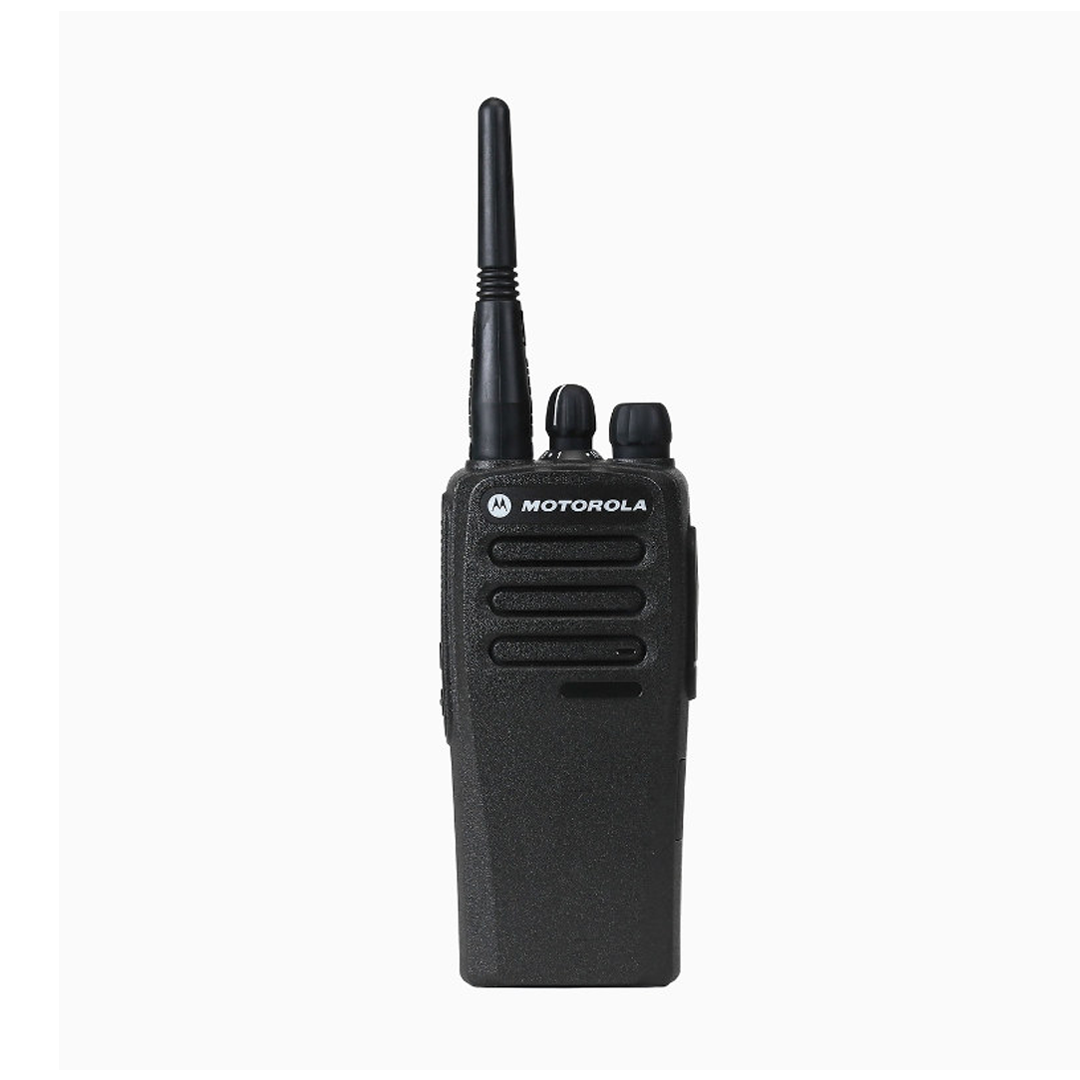

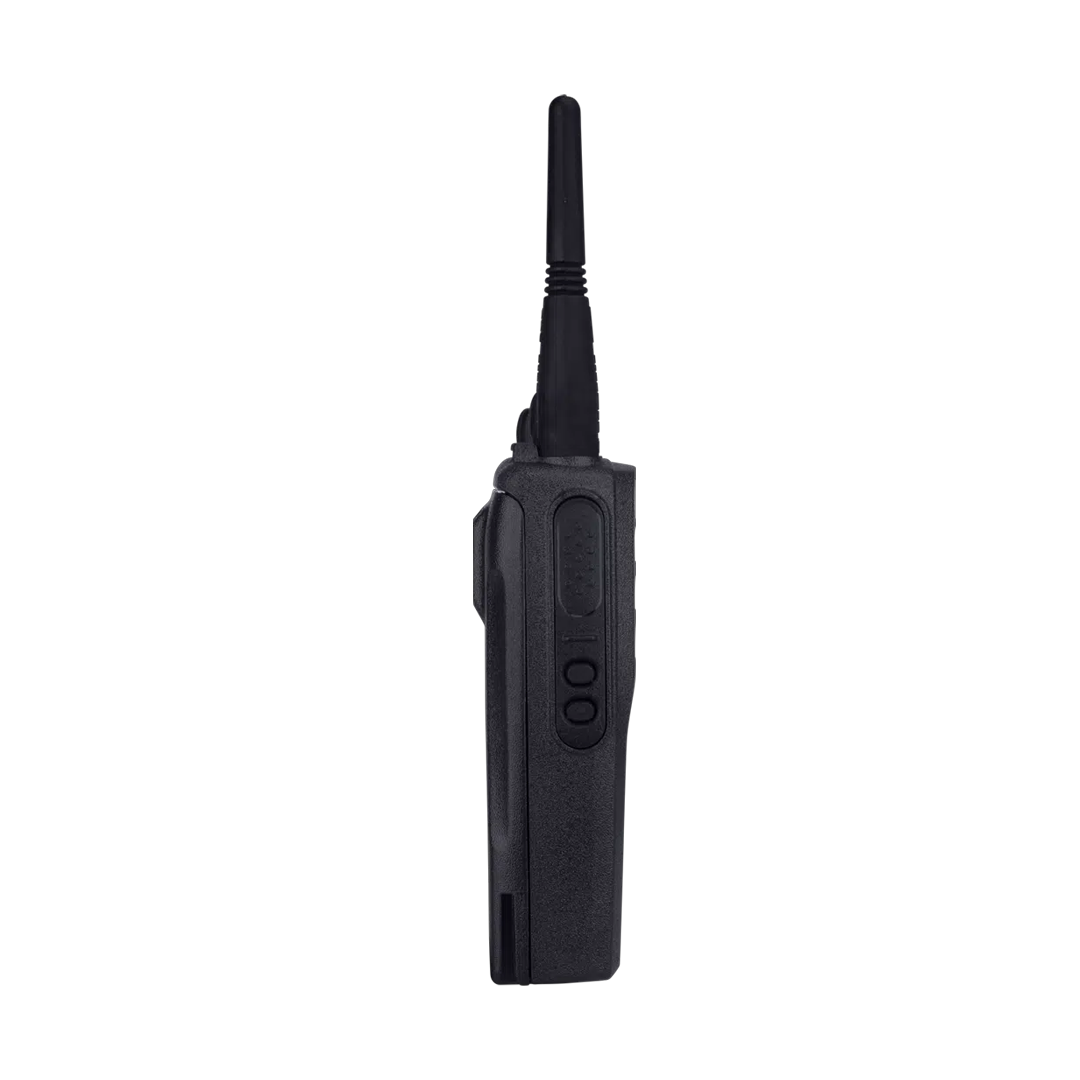

Motorola DP1400 2 Way Radio DIGITAL

More Views

Product Part Number: DP1400 DIG

Motorola DP1400 2 Way Radio DIGITAL

reviews 0 0 5

1 Review(s) | Add Your Review

Availability: In stock

Was: £279.60

Was: £233.00

Now: Ex. VAT: £150.00 Incl. VAT: £180.00

Versatile and powerful, MOTOTRBO™ Motorola DP1400 2 way radio combines the best of two-way radio functionality with the latest and digital technology. The MOTOTRBO portfolio offers the right device for the right user, from voice-only portables to feature-rich voice and data radios.

This special price package comes complete with antenna, battery and charger. Once your order has been placed, a member of the sales team will be in contact with you to discuss your antenna and battery requirements.

free uk next day delivery

FREE UK Delivery

Programming Included

Need Advice? Call Us on 0800 328 0100

Authorised Dealer For

Motorola

Product Description

Details

The rugged MOTOTRBO Motorola DP1400 is available as an digital 2 way radio that offers all the benefits of the latest technology – from superior audio to greater coverage to longer battery life. This affordable portable is compatible with advanced MOTOTRBO features you’ll fi nd are business-essential, for example a transmission can be interrupted to prioritise critical communications.

Simple and affordable, the DP1400 portable two-way analogue/digital radio connects your workforce efficiently—and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analogue and digital technology, the DP1400 is perfect for the everyday user who wants to stay connected. Fully compatible with the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.

You can also choose the analogue-only DP1400 model, which gives you great voice communications today, with a path to crisp and clear digital voice communications when you’re ready. All you will need is a simple software upgrade.

Whatever your needs, the Motorola DP1400 2 Way Radio provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.

Whats in the box?

1 x Radio	1 x Battery
1 x Antenna	1 x Belt Clip
1 x Charger	1 x Instruction Manual

Features:

Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet. The freedom to migrate to the latest technology at your own pace.

Transmit Interrupt Capability (decode only) - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.

Compatible with Radio Management Suite - Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

Dual Capacity Direct Mode - Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel – without the need for a repeater.

IP54 Rated - Dustproof and splashproof, so you can work with confidence in challenging environments.

Standard Features:

16 Channels	Voice Announcement
Lone worker	IP54

Technical Specification

Additional Information

Barcode	5055563813999
Product Specification Sheet
Radio Series	DP1000 Series
Type of Radio	Hand Held Portable
Frequency Range	UHF: 403-470 MHz VHF: 136-174 MHz
Channel Capacity	16
Channel Spacing	12.5 / 20 / 25kHz
Operating Voltage	>7.5 V (Nominal)
Type of Battery	NiMH 1400mAh as standard - upgrade to Li-Ion option available
Battery Life (Digital)	Approx. 11.5 hours
Battery Life (Analogue)	Approx. 9 hours
Frequency Stability	± 0.5 ppm
Dimensions (H x W x D)	127.7 x 61.5 x 42.0 mm
Weight of Radio (includes battery and antenna)	406 g
RX Digital Sensitvity	0.25 uV / 0.19 uV (typical) @ 5% BER
RX Analogue Sensitivity	0.3 uV / 0.22 uV (typical) @ 12dB SINAD
RX Selectivity (TIA-603)	45dB @ 12.5 kHz 70dB @ 20/25kHz
RX Intermodulation (TIA-603)	70 dB
Spurious Response Rejection (TIA-603)	70 dB
RX Hum and Noise	-40dB @ 12.5 kHz -45dB @ 20/25kHz
RX Rated Audio Power Output	0.5 W (Internal)
RX Rated Audio Distortion	5%
RX Audio Response	TIA603D
RX Conducted Spurious Emission	-57 dBm
TX 4FSK Digital Modulation	12.5 kHz Data: 7K60F1D & 7K60FXD 12.5 kHz Voice: 7K60F1E & 7K60FXE Combination of 12.5 kHz Voice & Data: 7K60F1W
TX Conducted/Radiated Emission	-36 dBm < 1GHz -30 dBm > 1GHz
TX Modulating Limiting	± 2.5kHz @ 12.5 kHz ±4.0kHz @ 20kHz ± 5.0kHz @ 25 kHz
Tx FM Hum & Noise	-40dB@ 12.5 kHz -45dB@ 20/25kHz
Tx Audio Response	TIA603D
Tx Audio Distortion	3%
Tx Digital Vocoder Type	AMBE+2™
Tx Digital Protocol	ETSI TS 102 361-1, -2, -3
Operating Temperature	-30° C / +60°C
Storage Temperature	-40° C / +85°C
ESD	IEC 61000-4-2 Level 3
American Military Standard	MIL-STD-810 C / D / E / F / G
Dust & Water Instrusion	IP54
Humidity	MIL-STD-810 C / D / E / F / G
Shock & Vibration	MIL-STD-810 C / D / E / F / G
GPS - Time to first fix - cold start
GPS - Time to first fix - hot start
Horizontal Accuracy
