- Motorola DP1400 2 Way Radio (ANALOGUE)
- Product Description
-
Details

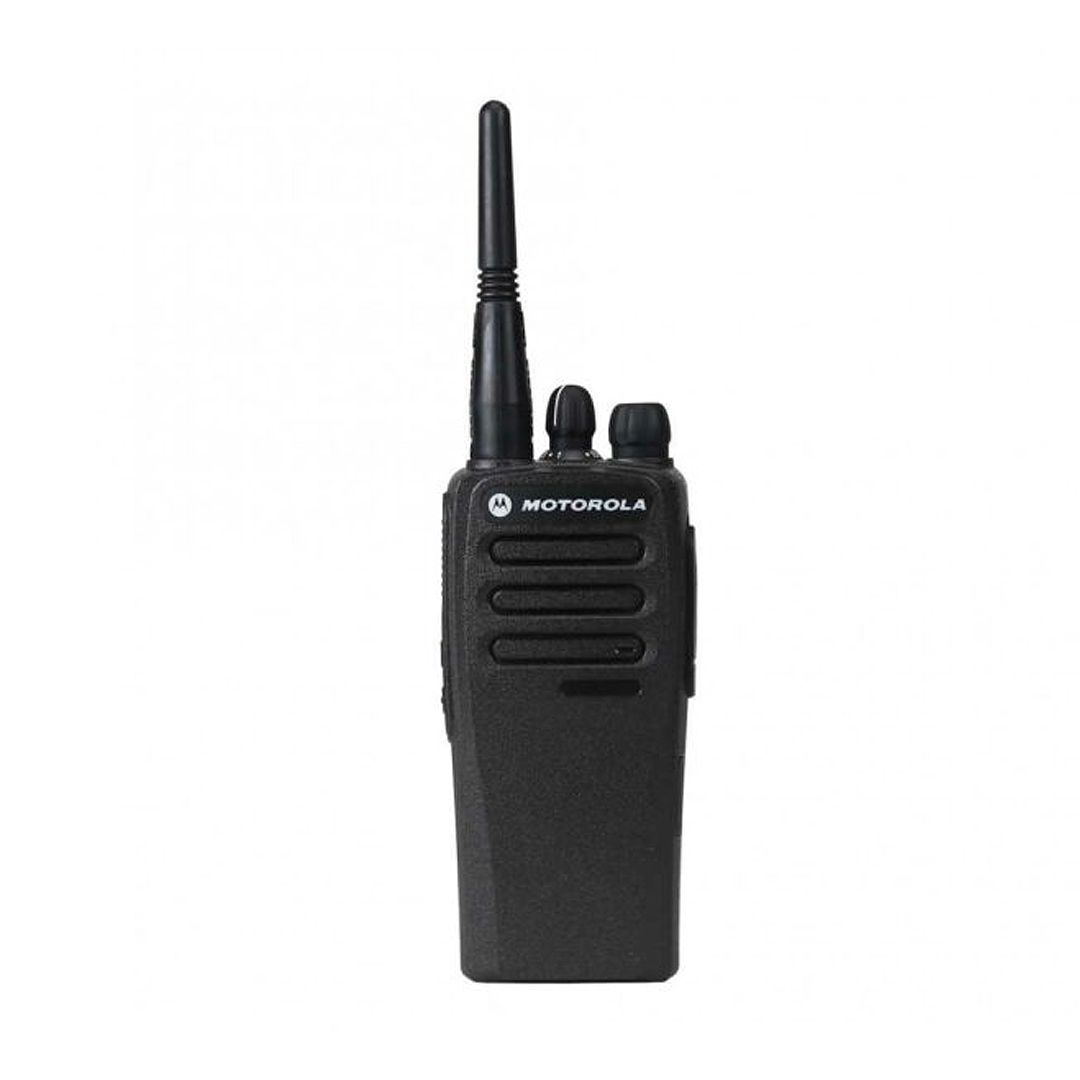

The rugged MOTOTRBO Motorola DP1400 2 Way Radio is available as an analogue radio that offers all the benefits of the latest technology – from superior audio to greater coverage to longer battery life. This affordable portable is compatible with advanced MOTOTRBO features you’ll fi nd are business-essential, for example a transmission can be interrupted to prioritise critical communications.
Simple and affordable, the DP1400 portable two-way analogue radio connects your workforce efficiently—and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analogue and digital technology, the DP1400 is perfect for the everyday user who wants to stay connected. Fully compatible with the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.
Whatever your needs, the Motorola DP1400 2 Way Radio provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.
Features:
Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet. The freedom to migrate to the latest technology at your own pace.
Transmit Interrupt Capability (decode only) - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.
Compatible with Radio Management Suite - Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
Dual Capacity Direct Mode - Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel – without the need for a repeater.
IP54 Rated - Dustproof and splashproof, so you can work with confidence in challenging environments.
Note: Analogue version
Standard Features:
16 Channels Voice Announcement Lone worker IP54 Whats in the box?
1 x Radio 1 x Battery 1 x Antenna 1 x Belt Clip - Technical Specification
-
Additional Information
Barcode 5055563813999 Product Specification Sheet Radio Series DP1000 Series Type of Radio Hand Held Portable Frequency Range UHF: 403-470 MHz
VHF: 136-174 MHz
Channel Capacity 16
Channel Spacing 12.5 / 20 / 25kHz
Operating Voltage >7.5 V (Nominal)
Type of Battery NiMH 1400mAh as standard - upgrade to Li-Ion option available
Battery Life (Digital) Approx. 11.5 hours
Battery Life (Analogue) Approx. 9 hours
Frequency Stability ± 0.5 ppm
Dimensions (H x W x D) 127.7 x 61.5 x 42.0 mm
Weight of Radio (includes battery and antenna) 406 g
RX Digital Sensitvity 0.25 uV / 0.19 uV (typical) @ 5% BER
RX Analogue Sensitivity 0.3 uV / 0.22 uV (typical) @ 12dB SINAD
RX Selectivity (TIA-603) 45dB @ 12.5 kHz
70dB @ 20/25kHz
RX Intermodulation (TIA-603) 70 dB
Spurious Response Rejection (TIA-603) 70 dB
RX Hum and Noise -40dB @ 12.5 kHz
-45dB @ 20/25kHz
RX Rated Audio Power Output 0.5 W (Internal)
RX Rated Audio Distortion 5%
RX Audio Response TIA603D
RX Conducted Spurious Emission -57 dBm
TX 4FSK Digital Modulation 12.5 kHz Data: 7K60F1D & 7K60FXD
12.5 kHz Voice: 7K60F1E & 7K60FXE
Combination of 12.5 kHz Voice & Data: 7K60F1W
TX Conducted/Radiated Emission -36 dBm < 1GHz
-30 dBm > 1GHz
TX Modulating Limiting ± 2.5kHz @ 12.5 kHz
±4.0kHz @ 20kHz
± 5.0kHz @ 25 kHz
Tx FM Hum & Noise -40dB@ 12.5 kHz
-45dB@ 20/25kHz
Tx Audio Response TIA603D
Tx Audio Distortion 3%
Tx Digital Vocoder Type AMBE+2™
Tx Digital Protocol ETSI TS 102 361-1, -2, -3
Operating Temperature -30° C / +60°C
Storage Temperature -40° C / +85°C
ESD IEC 61000-4-2 Level 3
American Military Standard MIL-STD-810 C / D / E / F / G
Dust & Water Instrusion IP54
Humidity MIL-STD-810 C / D / E / F / G
Shock & Vibration MIL-STD-810 C / D / E / F / G
GPS - Time to first fix - cold start GPS - Time to first fix - hot start Horizontal Accuracy - Warranty & Guarantee
-
All products supplied are covered by the manufacturers’ warranty, either 12 or 24 months depending on manufacturer, unless otherwise stated in writing. The warranty period commences from date of delivery/receipt. 2 Way Radio Shop cannot be liable for any defects arising from fair wear and tear, physical damage, liquid ingression or damage and or interference by the customer or any third party.
2 Way Radio Shop reserve the right to refuse to repair or replace goods if
- full payment for the goods has not been made
- the manufacturer refuses to accept the repairs/replacements under warranty for whatever reason.
